1.6meters 3meters 500kg Fully Electric Drum Stacker For Drum Transportation And Lifting

Brand Name : KAD

Model Number : COT0.35D

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : ＄2000-＄2600 /unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200units/month

Delivery Time : 7 working days

Packaging Details : Iron pallet+plastic film

Load Capacity : 550kg

Front Leg Width : 640/800mm

Battery : 12V/120Ah

Lifting Height : 3000mm

Lifting Speed : 120mm/s

Overall Length : 1480mm

Overall Width : 1040mm

Overall Height : 2075mm

Contact Now

Product Application

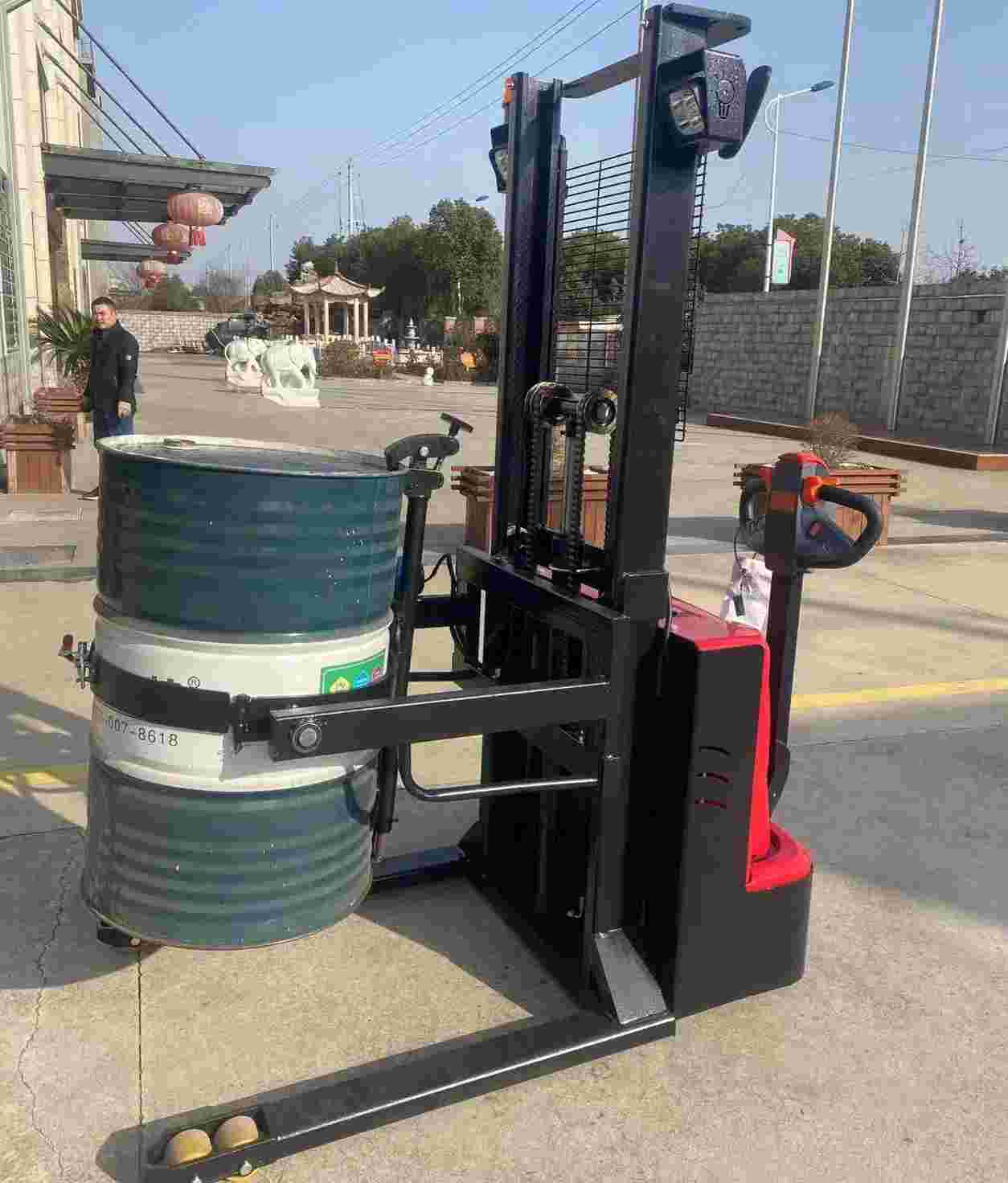

1.6meters 3meters 500kg Fully electric drum stacker for drum transportation and lifting

The Full electric drum stacker is predominantly utilized in industries requiring efficient and safe handling of heavy drums or containers, such as the chemical sector where it streamlines the transportation and storage of oil drums and chemical containers, enhancing workplace safety and productivity. Additionally, it finds application in logistics and warehousing, where it aids in swift and seamless drum movements, as well as in manufacturing facilities processing liquids, promoting automation and reducing manual labor.

1.6meters 3meters 500kg Fully Electric Drum Stacker For Drum Transportation And Lifting

1.6meters 3meters 500kg Fully Electric Drum Stacker For Drum Transportation And Lifting

1.6meters 3meters 500kg Fully Electric Drum Stacker For Drum Transportation And Lifting

Main Features

1.With explosion-proof valve at the bottom of cylinder, even ifthe pipe burst, the mast will not rapidly decline.
2.Heavy duty steel mast is reliable and hard to bend over.
3.The foot brake is easy to operate and maintain.
4.The width of fork can be adjusted easily for its Sleeve design.

Specification
MODEL
CDDW10 CDDW15
Features
Drive system
Battery
Driving mode
Walkie
Load Capacity
Q
KG
1000
Load Center
C
MM
500
Weight
Weight(With battery)
KG
480/495/515/535
Wheels
Material
PU
Size
Lifting Height
H3
MM
1600/2000/2500/3000
Lowest Mast
H1
MM
2080/1580/1830/2080
Max.Height when operating
H4
MM
2080/2730/3230/3730
Min.Height of Fork
H13
MM
≤90
Length
L1
MM
1770
Width
B1
MM
850
Fork Length
L
MM
1070
Wheelbase
Y
MM
1250
Fork Outside Width
B5
MM
680
Fork Inside Width
MM
305
Min.Turning Radius
WA
MM
1390
Performance
Driving Speed
(Empty/Full Load)
MM/S
5.0/5.0
Lifting Speed
(Empty/Full Load)
MM/S
140/135
Descending Speed
(Empty/Full Load)
MM/S
150/155
Max.Gradient
(Empty/Full Load)
°
7/5
Brake
Electromagnetic brake
Driving Motor
KW
DC/0.75
Lifting Motor
KW
DC/2.2
Battery
Capacity
V/Ah
24/80Ah
